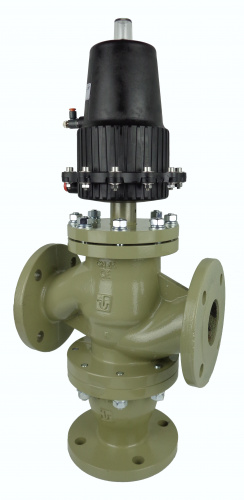

13515 - GRS/P C15 DN040 H080 GJL PN16 PK 3WDNC VD FR


GRS/P C15 DN040 T080 GJL PN16 PK 3VDNC DV RP
GRS/P C15 DN040 T080 GJL PN16 PK 3VDNC DV RP

NEED MORE INFORMATION? Our staff is at your disposal!

Call now
015 980641 or send us an email to
info@italvalvole.com

ENGLISH MANUAL (PDF): 14694
DN: 40
Diametro sede [mm]: 38
SEAT DIAMETER [MM]: 38
CONNECTIONS: EN1092-1 PN16
RATING [BARG]: 16
MAXIMUM FLUID TEMPERATURE [°C]: 200
ACTUATOR ACCESSORIES: VISUAL DEVICE+FLOW REGULATOR
ACTUATOR FUNCTION (NC/NO/FAIL LAST): NO STRAIGHT WAY
KV [M3/H]: 26.5
MAX DELTAP [BAR]: 12
CHARACTERISTIC: QUICK OPENING
ACTUATOR: H080 - TECHNOPOLYMER [PA66 FV30]
SE/DE: SIMPLE EFFECT
STEAM SEAL: PACKING - PTFE-PTFE/GRAPHITE
SEAT SEAL: PEEK
BODY MATERIAL: GJL-250 [0.6025]
STROKE [MM] / ROTATION [°]: 11
LOWER SUPPLY PRESSURE [BARG / PSIG]: 6
UPPER SUPPLY PRESSURE [BARG / PSIG]: 8,0
NR WAYS: 3
SUPPLY-FLUID CONNECTION: QUICK COUPLING - PIPE 4X6
2014/68/UE DIRECTIVE CLASSIFICATION (PED): ARTICLE 4, PARAGRAPH 3
