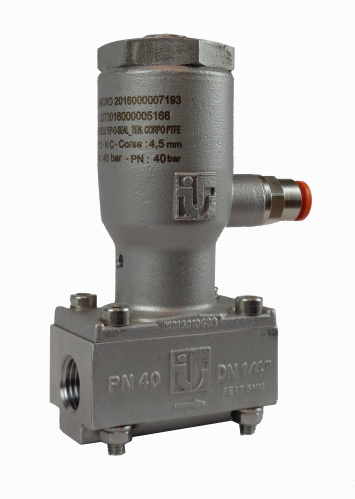

16232 - IMF DN008 H032 CF8M BSPP PTFE 2WNC IS-A 2WIRE AC


IMF DN008 T032 CF8M BSPP PTFE 2VNC SI-A 2fili AC
IMF DN008 T032 CF8M BSPP PTFE 2VNC SI-A 2fili AC

NEED MORE INFORMATION? Our staff is at your disposal!

Call now
015 980641 or send us an email to
info@italvalvole.com

DN: 8
Diametro sede [mm]: 8
SEAT DIAMETER [MM]: 8
CONNECTIONS: FF 1/4"BSPP
RATING [BARG]: 16
MAXIMUM FLUID TEMPERATURE [°C]: 140
ACTUATOR ACCESSORIES: INDUCTIVE SENSORS 2 LINE OPENING
ACTUATOR FUNCTION (NC/NO/FAIL LAST): NC
KV [M3/H]: 1.2
MAX DELTAP [BAR]: 20
ACTUATOR: H032 - AISI304 [1.4301]
SE/DE: SIMPLE EFFECT
STEAM SEAL: PACKING - PTFE-PTFE/GRAPHITE
SEAT SEAL: PTFE
BODY MATERIAL: AISI316 [1.4408]
STROKE [MM] / ROTATION [°]: 6
LOWER SUPPLY PRESSURE [BARG / PSIG]: 6
UPPER SUPPLY PRESSURE [BARG / PSIG]: 8,0
NR WAYS: 2
SUPPLY-FLUID CONNECTION: 1/8"G
2014/68/UE DIRECTIVE CLASSIFICATION (PED): ARTICLE 4, PARAGRAPH 3
