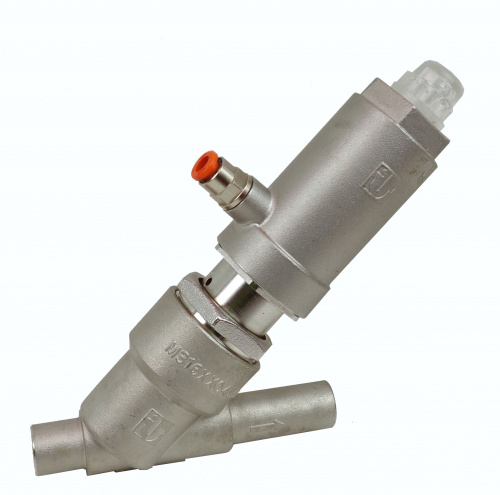

15169 - IMF DN011 H032 CF8M BW PTFE 2WNC VD
NEED MORE INFORMATION?
Our staff is at your disposal!
Call now
015 980641
or send us an email to
info@italvalvole.com
| DN: | 11 |
| Diametro sede [mm]: | 11 |
| SEAT DIAMETER [MM]: | 11 |
| CONNECTIONS: | BW |
| RATING [BARG]: | 16 |
| MAXIMUM FLUID TEMPERATURE [°C]: | 140 |
| ACTUATOR ACCESSORIES: | VISUAL DEVICE |
| ACTUATOR FUNCTION (NC/NO/FAIL LAST): | NC |
| KV [M3/H]: | 2.3 |
| MAX DELTAP [BAR]: | 12 |
| ACTUATOR: | H032 - AISI304 [1.4301] |
| SE/DE: | SIMPLE EFFECT |
| STEAM SEAL: | PACKING - PTFE-PTFE/GRAPHITE |
| SEAT SEAL: | PTFE |
| BODY MATERIAL: | AISI316 [1.4408] |
| STROKE [MM] / ROTATION [°]: | 8 |
| LOWER SUPPLY PRESSURE [BARG / PSIG]: | 6 |
| UPPER SUPPLY PRESSURE [BARG / PSIG]: | 8,0 |
| NR WAYS: | 2 |
| SUPPLY-FLUID CONNECTION: | 1/8"G |
| 2014/68/UE DIRECTIVE CLASSIFICATION (PED): | ARTICLE 4, PARAGRAPH 3 |
