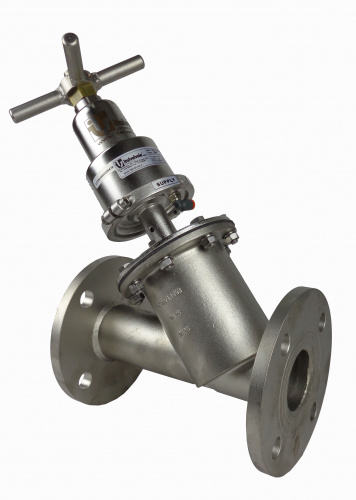

16901 - IVFL/07 ND80 T.125 NP16 4 SPOKE HW. EPDM PLUG
NEED MORE INFORMATION?
Our staff is at your disposal!
Call now
015 980641
or send us an email to
info@italvalvole.com
| DN: | 80 |
| Diametro sede [mm]: | 80 |
| SEAT DIAMETER [MM]: | 80 |
| CONNECTIONS: | EN1092-1 PN16 |
| RATING [BARG]: | 10 |
| MAXIMUM FLUID TEMPERATURE [°C]: | 150 |
| ACTUATOR ACCESSORIES: | EMERGENCY HANDWHEEL |
| ACTUATOR FUNCTION (NC/NO/FAIL LAST): | NC |
| KV [M3/H]: | 130.5 |
| MAX DELTAP [BAR]: | 6.5 |
| CHARACTERISTIC: | QUICK OPENING |
| ACTUATOR: | H125 - AISI304 [1.4301] |
| SE/DE: | SIMPLE EFFECT |
| STEAM SEAL: | PACKING - PTFE-PTFE/GRAPHITE |
| SEAT SEAL: | PTFE-COATED EPDM |
| BODY MATERIAL: | AISI316 [1.4408] |
| STROKE [MM] / ROTATION [°]: | 20 |
| LOWER SUPPLY PRESSURE [BARG / PSIG]: | 6 |
| UPPER SUPPLY PRESSURE [BARG / PSIG]: | 8,0 |
| NR WAYS: | 2 |
| SUPPLY-FLUID CONNECTION: | QUICK COUPLING - PIPE 4X6 |
| 2014/68/UE DIRECTIVE CLASSIFICATION (PED): | ARTICLE 4, PARAGRAPH 3 |
