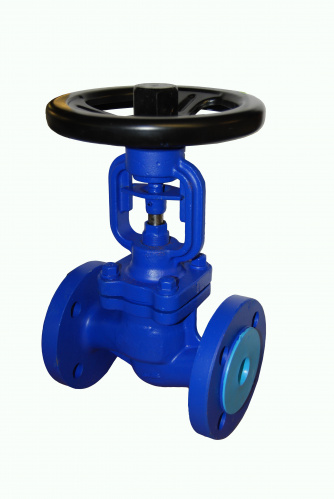

16485 - IVGL GLOBE V. DN150 WCB/304 304 PN16 HW BELL (T-0160)


IVGL V.GLOBO DN150 WCB/304 304 PN16 V SOFF (T-0160)
IVGL V.GLOBO DN150 WCB/304 304 PN16 V SOFF (T-0160)

NEED MORE INFORMATION? Our staff is at your disposal!

Call now
015 980641 or send us an email to
info@italvalvole.com

ITALIAN DATA SHEET (PDF): 15455
ITALIAN MANUAL (PDF): 11111
DN: 150
Diametro sede [mm]: 0
SEAT DIAMETER [MM]: 0
CONNECTIONS: EN1092-1 PN16
RATING [BARG]: 16
MAXIMUM FLUID TEMPERATURE [°C]: 350
KV [M3/H]: 0
MAX DELTAP [BAR]: 16
ACTUATOR: MANUAL
STEAM SEAL: GRAPHITE
SEAT SEAL: AISI304 [1.4301]
BODY MATERIAL: [1.0619]
STROKE [MM] / ROTATION [°]: 0
NR WAYS: 2
SUPPLY-FLUID CONNECTION: NULL
2014/68/UE DIRECTIVE CLASSIFICATION (PED): NULL
