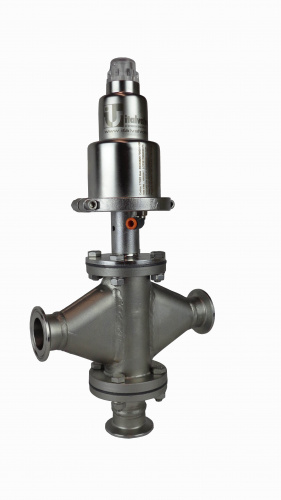

17026 - IVS DN025 H070 316 CLAMP EPDM 3WDNC VD
NEED MORE INFORMATION?
Our staff is at your disposal!
Call now
015 980641
or send us an email to
info@italvalvole.com
| ITALIAN MANUAL (PDF): | 11111 |
| ITALIAN DATA SHEET (PDF): | 00000 |
| DN: | 25 |
| Diametro sede [mm]: | 25 |
| SEAT DIAMETER [MM]: | 25 |
| CONNECTIONS: | CLAMP |
| RATING [BARG]: | 16 |
| MAXIMUM FLUID TEMPERATURE [°C]: | 150 |
| ACTUATOR ACCESSORIES: | VISUAL DEVICE |
| ACTUATOR FUNCTION (NC/NO/FAIL LAST): | NO STRAIGHT WAY |
| KV [M3/H]: | 17.7 |
| MAX DELTAP [BAR]: | 9.5 |
| CHARACTERISTIC: | QUICK OPENING |
| ACTUATOR: | H070 - AISI304 [1.4301] |
| SE/DE: | SIMPLE EFFECT |
| STEAM SEAL: | PACKING - PTFE-PTFE/GRAPHITE |
| SEAT SEAL: | PTFE-COATED EPDM |
| BODY MATERIAL: | AISI316 [1.4408] |
| STROKE [MM] / ROTATION [°]: | 15 |
| LOWER SUPPLY PRESSURE [BARG / PSIG]: | 6 |
| UPPER SUPPLY PRESSURE [BARG / PSIG]: | 8,0 |
| NR WAYS: | 3 |
| SUPPLY-FLUID CONNECTION: | QUICK COUPLING - PIPE 4X6 |
| 2014/68/UE DIRECTIVE CLASSIFICATION (PED): | ARTICLE 4, PARAGRAPH 3 |
